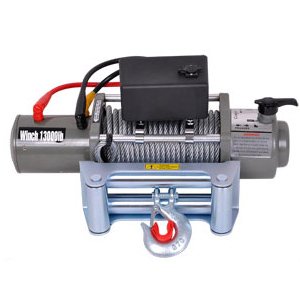

Adequate Quality Wireless Remote 13000LBS Industury Electric Winch 12 Volt 12V Car Auto Automotive Truck Picktruck

Other Views:

Brand: OEM Control

Media: Misc.

MPN: OEM-33WIN008-S13000-1
EAN: 6903148083772

Features:

	This is an Electric Winch which is packed with the features you just want
	Upgraded Features: 500A Excellent power relay delivers long time over current and it's better water resistant
	Easy installation of wireless remote control receiver, just plug into the control box
	Package Included: 1 x 13,000 lbs Winch; 1 x Solenoid Box Assembly; 1 x Roller Fairlead; 1 x Remote Switch with 12ft Cable; 1 x Wireless Remote Control; 1 x Hook; 1 x Safety Pull Strap; 1 x 72" Battery Leads; 1 x Pair of Safety Gloves; 1 x Users Manual; Some Fixing Accessories
	Notice:1) Do not use winch as a hoist, do not use for transportation of people.2) Don't operate and spool under full load over one minute continuously.3) While motor is over heating, please stop for a while to cool down.4) 1 Year Manufacturer Warranty. (We will send the necessary accessories for replacement. But the warranty doesn't cover user damage.)

Editorial Reviews:

Product Description
Features:
13,000 LBS( single line rated pull ) Electric Winch
Efficient Three-stage Planetary Gear Train helps to offer powerful horsepower
4-Way Roller Fairlead to guide the rope onto the drum evenly
Free spooling clutch allows the wire rope to be pulled out without using electric power
Power IN and OUT through remote control with 12ft leads or wireless remote control(Both Available)
Easy installation of wireless remote control receiver, just plug into the control box
Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
Custom gaskets seal up critical inner components from water and debris infiltration
Specification:
Single line rated pull: 13000 lbs. (5897kgs)
Motor: 12V 6.6hp/4.8kw, Series Wound
Control: Remote Switch, 12ft(3.7m)lead & 12V Wireless Remote
Gear train: 3 Stage Planetary
Gear reduction ratio: 187.2:1
Clutch: Keyway Cam
Braking Action: Two Way Braking Action In-The-Drum
Cable(Diam. x L): 0.36" x 92" ( 9.1mm x 28m)
Fairlead: 4-Way Roller Fairlead
Wireless Remote Control: Included
Battery Recommended: 650CCA minimum for winching
Battery Leads: 2 gauge, 72"(183mm)
Finish: Dark Gray
Overall Dimensions(L x W x H): 21.1" x 6.3" x 8.6"(537mm x 160mm x 218mm)
Mounting Bolt Pattern(L x W): 10" x 4.5"(254mm x 114.3mm)
Weight (Net weight): 88 lbs.(40 kgs)
Line speed and motor current (first layer):
Line Pull (lbs.) / Line Speed (FPM) / Current (A)
0 / 33.3 / 85
4000 / 16.8 / 158
6000 / 12.8 / 231
8000 / 10.1 / 302
10000 / 8.8 / 371
13000 / 7.6 / 450
Line pull and Cable capacity:
layer of cable Rated Line Pull (lbs) Total Rope on Drum (ft)
1 / 13000 / 17
2 / 9210 / 41
3 / 8030 / 72
4 / 6893 / 99.5
