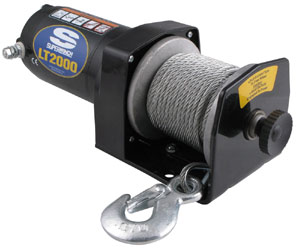

Superwinch 1220210 LT2000 Utility Winch |  | Brand: Superwinch
List Price: $115.32
Buy New: $73.21
as of 5/18/2012 12:10 CDT details
You Save: $42.11 (37%)
Media: Misc.
Shipping Weight (lbs): 14.4
Dimensions (in): 4.1 x 4.1 x 11
Warranty: One year mechanical/electrical
MPN: 1220210
Model: 1220210
UPC: 022705002646
EAN: 0022705002646
ASIN: B0015U6VLQ
| | | Price | Store | Condition | Availability | Ready to buy? | | $73.21 | Amazon.com
Trusted Store | New
Available | Shipping: Eligible for FREE Super Saver Shipping
Availability: Usually ships in 24 hours
| $73.21
|
|
| Features:
| | Features a powerful, yet efficient 1.0 hp (0.8kW) motor with a 2,000 lb pull rating and circuit breaker protection | | | Utilizes 49 feet of 5/32-inch wire rope (3.9mm x 15m) with a stainless thimble, as well as a quiet, efficient, differential planetary gear box, and pull and turn freespooling clutch | | | Easily upgraded to a fully functional ATV handlebar unit with minimal additional accessories | | | Includes a handheld rubber remote switch for better and safer performance at whatever distance from the winch is required | | | Includes a one-year warranty for defects in materials and workmanship as well as electrical components |
|
| Accessories:
|
| Similar Items:
| |
| Editorial Reviews:
Product Description
Superwinch LT2000 Series Master Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling drum for fast wire payout. It consists of 15-foot handheld remote switch made from cable tension plate for better performance. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements. It is backed by 1 year warranty for defects in materials and workmanship.
Amazon.com Product Description
| The Superwinch LT2000 Utility Winch is designed to provide compact, dependable and affordable performance suitable for the needs of any vehicle, trailer or workshop. It features a low Amp, 12 volt, 1.0 hp motor, with circuit breaker protection and a 2,000 lb line pull rating, handheld remote operation for safety, a free-spooling clutch for fast wire payout, 49 feet of 5/32" wire rope and the easy and optional ability to upgrade to a fully functional ATV handlebar unit with only a few accessories.  Compact, quiet, all-purpose winching with pull and turn freespooling clutch.
View larger. |  Remote operated with optional kit for ATV handlebar conversion.
View larger. |  Compact dimensions for mounting almost anywhere.
View larger. | Inexpensive, Compact and Quiet Winching Power
The Superwinch LT2000 Utility Winch is your best choice for compact, quiet, all-purpose winching – ideal for those needing a smaller, durable tool with brand-name reliability and function. This utility version winch is driven by a durable, but low Amp, permanent magnet 1.0 hp motor which is controlled by an included wired handheld remote containing two sets of color-coated electrical leads and a circuit breaker component and wire. One set of paired leads attaches to the winch and the other to the DC battery power source, with the circuit breaker component and wire added to the positive connection to the battery. Making these connections is easy, quick and ensures safe operation of the 49 feet of 5/32" rope wire included with the winch. The Superwinch LT2000 Utility Winch also features a pull and turn freespooling clutch, allowing for manual extending of wire rope, a heavy duty latched hook and a tree strap. Finally, accessory and switch upgrade kits allow for simple conversion of the LT2000 Utility Winch into an 2,000 LB ATV winch. Kits are available separately. Standard Features: - Low Amp, 12V DC, permanent magnet 1.0 hp (0.8kW) motor, with 2,000 LB line pull rating.
- 49 feet of 5/32" wire rope (3.9mm x 15m).
- Powers load in and out.
- Gear ratio 153:1.
- Pull and turn freespooling clutch.
- Circuit breaker protected.
- Heavy duty latched hook with rope thimble.
- Sealed, handheld switch.
- 1-year limited warranty.
What's in the Box
1-Superwinch LT2000 Utility Winch with 49 feet of 5/32" wire rope with rope thimble, 1-wired remote with dual electrical leads, 1-circuit breaker component and wire, 1-tree strap, M8 x 1.25 x 30mm mounting bolts (for use with a 1/4" (6.3mm) thick mounting plate, sold separately), 1-users manual. Specifications: | Rated line pull | 2,000 lb. (907 kg) bottom layer | | Motor | 1.0 hp (0.8kW) PM motor, 12V DC | | Gearing | Differential planetary | | Gear ratio | 153:1 | | Freespool clutch | Pull and turn action | | Wire rope | 5/32" x 49' (3.9mm x 15m) | | Dimensions | 11.0" l. x 4.1” d. x 4.1" h.
(285mm l. x 105mm d. x 105mm h.) | | Drum diameter/length | 1.25" (31.8mm)/2.83" (72.0mm) | | Installed weight | 12.0 LB (5.4 kg) | | Ship weight | 17.6 LB (8.0 kg) | | Switching method | Handheld remote | | Switching mechanism | Direct switch | | Roller fairlead | Optional | | Color-coated wiring | Yes | | Performance 12VDC (Bottom layer on drum): | Line Pull | Motor | Line Speed | | LB | (kg) | AMPS | FPM | (m/m) | | 0 | 0 | 10 | 10.0 | (3.0) | | 500 | (227) | 25 | 8.0 | (2.4) | | 1,000 | (454) | 50 | 6.5 | (2.0) | | 1,500 | (680) | 70 | 4.8 | (1.4) | | 2,000 | (907) | 100 | 2.5 | (0.8) | |
About Superwinch, Inc.
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application. One-Year Limited Lifetime Warranty
Superwinch, Inc. warrants to the original buyer that the mechanical and electrical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase for one year. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch’s discretion without charge to buyer upon buyer’s compliance with disclosed procedures. |
|
|
|
